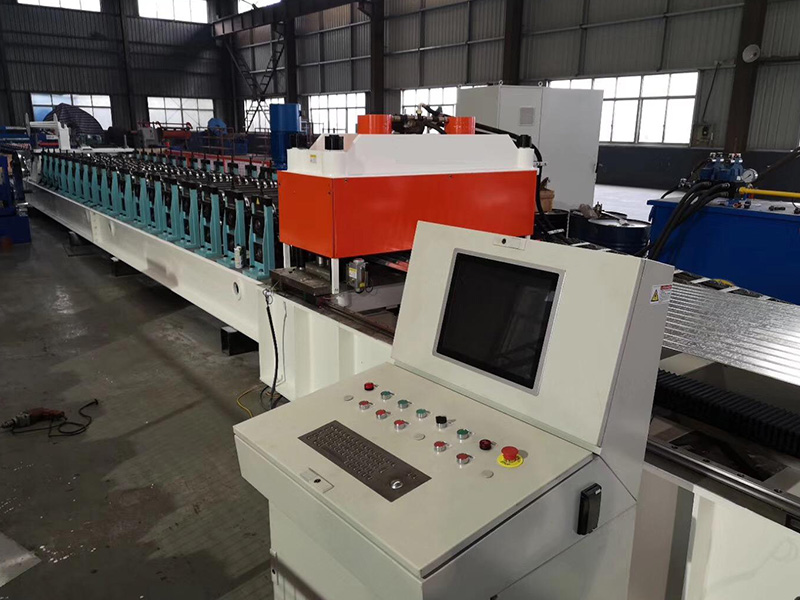

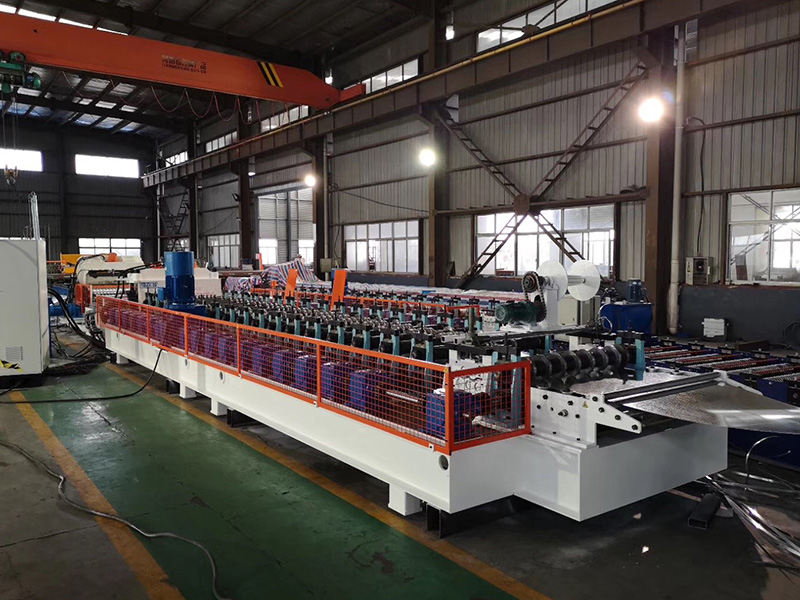

The metal silo roll forming machine is a highly efficient piece of equipment designed specifically for producing metal silos. With a high level of automation, it enables continuous production, significantly improving production efficiency. Equipped with a CNC system, it ensures precise product dimensions. The main components are made of high-strength alloy steel, offering excellent wear resistance and durability. The equipment undergoes heat treatment and surface anti-corrosion processing, making it suitable for long-term stable operation.
| Materials to form shutter door: | 1.0-4.0mm galvanized coils, Feeding width: 1220mm |
| Forming steps: | about 18 stations |
| Material of rollers: | Gcr15 steel precision-machined, high frequency quenching HRC58-62, |
| Material of main shaft : | 45# high quality steel (diameter＞￠50) |
| Cutting: | hydraulic cutting; quenching HRC58-62 |
| Electronic control: | PLC control Siemens Brand |
| Dimension of machine: | 11500mmX1350mmX800mm |
| Working speed: | 12-15m/min; |
| Drive system: | gear box drive |
| main motor power: | 45kw |
| Punching moulds: | 3 sets of punching dies at one time |
| Curving machine: | Curving continuously to make the sheets straight, the min Radius 1.8m, the Radius can be adjustable. |
| Cutting: | Hydraulic cutting |
| Hydraulic station power 37kw, the pressure 25-30Mpa. | |
| Out table: | lift auto stacker |
| Total Power | 130kw |
Working flow of silo roll forming machine
Decoiler(passive/auto)—Punching—roll forming machine—Servo Following Cutting
Steel silos are highly practical storage equipment with features such as being waterproof, moisture-proof, and insect-resistant. They can be widely used in various fields, including agriculture, grain storage, and the chemical industry.
