The U-channel roll forming machine can produce products of various specifications, meeting diverse product demands through one-click computer settings.
| Suitable Plate Material | thickness 1.5-2.5mm, Galvanized steel or blank steel |
| Working Speed | 8-9 meters / min |
| Forming Steps | about 19 stations |
| Material of Roller | Gcr15, Quench HRC58-62 Plated Chrome |
| Material of Shaft | 45# Advanced Steel (Diameter: 76mm), thermal refining |
| Driven system | Gearbox driven |
| Main Power with reducer | 18.5KW WH Chinese Famous |
| Cutting holder | servo following cutting |
| Motor power of hydraulic station | 5.5KW |
| Hydraulic station pressure | 12MPa |

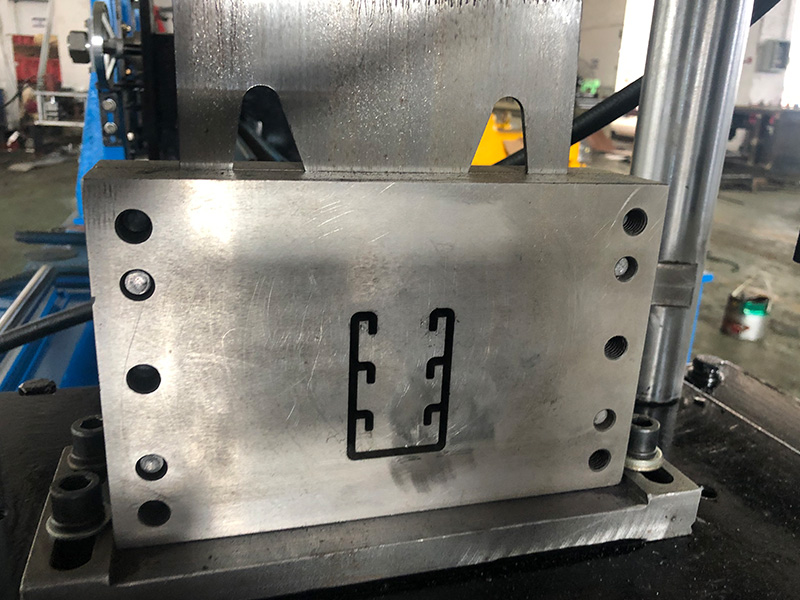

| Cutting type | hydraulic drive, cut after forming |
| Material of cutting blade | Cr12Mov , quenching process |
Working flow of c channel forming machine
Decoiler(passive/auto)—Punching—channel roll forming machine—Servo Following Cutting

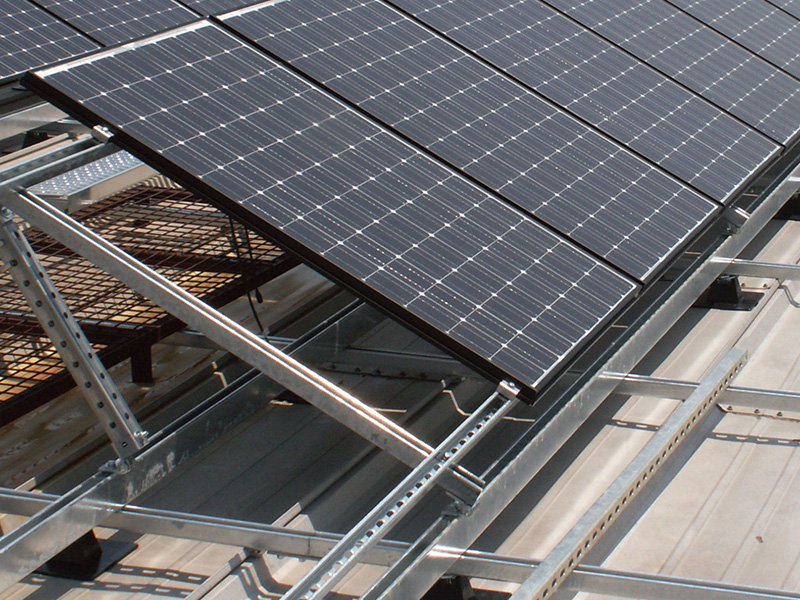

Solar photovoltaic brackets are specially designed structures for placing, installing, and securing solar panels in photovoltaic power generation systems. They are typically made of aluminum alloy, carbon steel, or stainless steel.
The features of solar photovoltaic bracket systems include no welding, no drilling, 100% adjustability, and 100% reusability.
